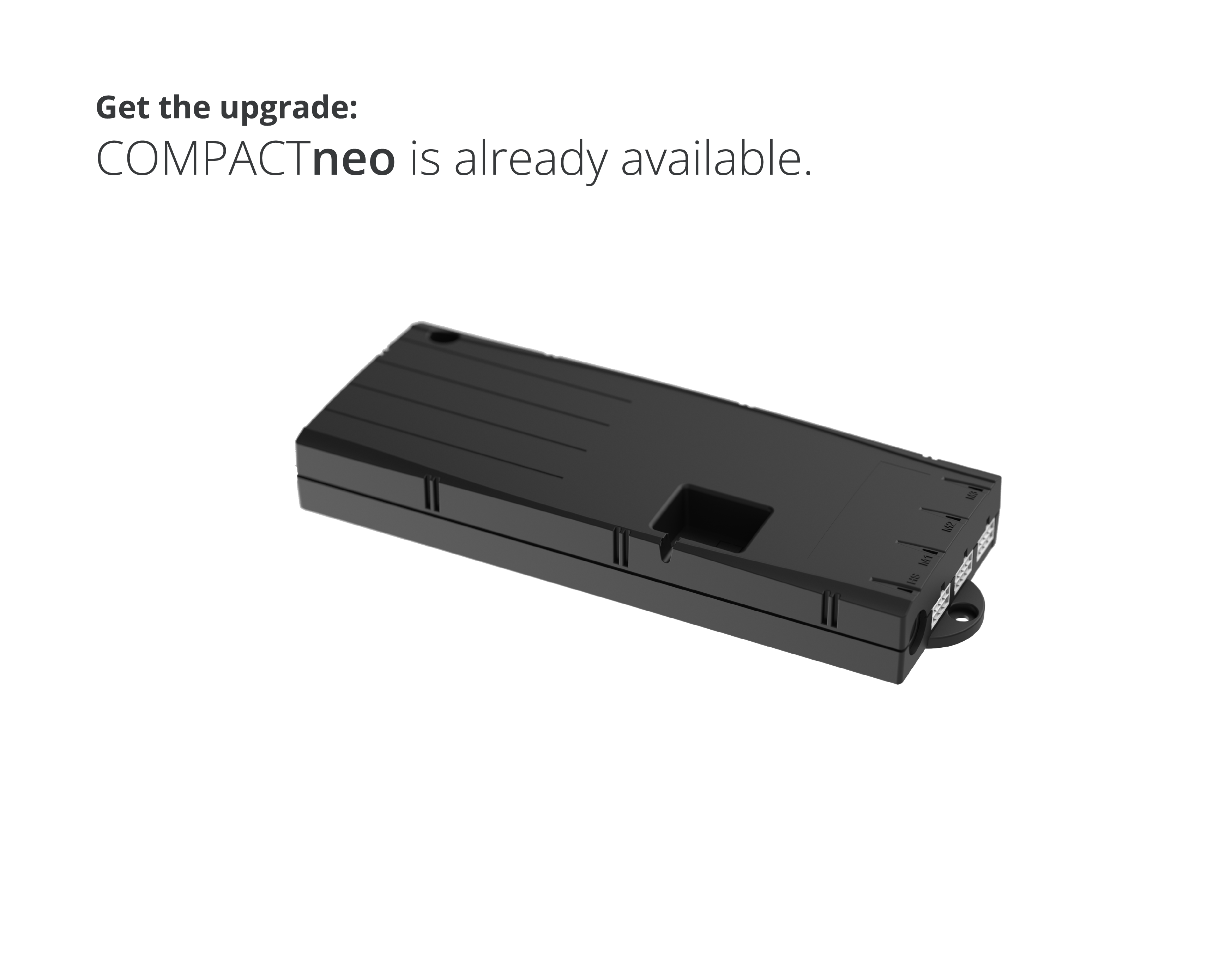

Compact

The Allrounder.

Compact



DESCRIPTION

If control is king, the COMPACT is the prince of the (r)evolution: high performance, ultra-compatible Control Boxes that form the basis for a colossal range of adjustable furniture applications.

By exercising masterful control over up to three Drives within two Motor Groups, the COMPACT has the capacity to power an endless variety of table systems. Yet power is nothing without flexibility, which is why the COMPACT has the capacity support external collision sensors and cascade with up to four other COMPACT Control Boxes, providing limitless options for customization.

Thanks to its hugely expansive functionality and peerless performance, COMPACT is the new word for world-class Switch Mode Power Supplies: no rival comes close.

Logicdata Compact-f



FEATURES

Optimized low-profile design

Maximum-efficiency Switch Mode Power Supply (SMPS)

Freely programmable software: speed control, plug detection, drive detection, and collision detection functions

Configurable reset and stopping procedures

Cascading: connect up to 4 COMPACT Control Boxes

< 0.3 W standby power consumption (0.1 W optional – only for EU version)

LOGIClink compatibility

Much more: additional features can be accessed using LOGICDATA Hand Controls

TECHNICAL DATA

3 motors at 360 W output power

0.3 W or 0.1 W (only for EU version) ultra-low stand-by consumption

Compatible with all LOGICDATA hand switches

HARDWARE OPTION: EU input voltage version, US voltage version, 2/3 motor version

Compare by choosing products (max. 3)
SMARTneo
Compatible with these products
CBItouch B
CBItouch C

MORE INFORMATION

Download

For more information download the COMPACT datasheet.

Logicdata Click-Icon-blau

Download

For more information download the COMPACTeco+ datasheet.

Logicdata Click-Icon-blau

Download

For more information download the COMPACT user manual.

Logicdata Click-Icon-blau

Download

For more information download the COMPACTeco 1.11 user manual.

Logicdata Click-Icon-blau

Download

For more information download the COMPACTeco 1.9 user manual.

Logicdata Click-Icon-blau

Download

For more information download the COMPACTeco 1.8 user guide.

Logicdata Click-Icon-blau

Download

For more information download the COMPACTeco cascading manual.

Logicdata Click-Icon-blau
