DMDinline S

Born to drive.

dmd500_detail01



DESCRIPTION



Phenomenal. The intelligent technology within the DYNAMIC MOTION system’s Actuators delivers a uniquely powerful, responsive driving experience without the need for external Control Boxes.

The DMDinline S‘s Plug&Play compatibility concept facilitates total freedom in design for a vast range of single-stage adjustable table systems, including benching and conference applications. With countless other features – including ultra-quiet brushless motor technology and an as-standard inbuilt collision sensor that dramatically reduces the risk of costly system damage – the DMDinline S plays and integral role in the creation of the intelligent height-adjustable solutions that the modern workplace desires.

dmd500_features



FEATURES



Inline Actuator for single-stage telescopic table legs

Integrated Control Unit – no need for external Control Boxes

Market-leading efficiency and responsiveness

Compatibility with bench and conference applications

Brushless motor technology

Simplified cable management system

Integrated collision sensor





TECHNICAL DATA



Dynamic force: Up to 700 N per Actuator

Diameter: 42 mm / 1.65 ”

Installation length: 606 mm / 23.84 ”

Stroke: 497 mm / 19.57 ”

Constant speed: 38 mm/s / 1.50 ”/s (until full load)

Inline actuator for single-stage telescopic table legs

Compare by choosing products (max. 3)

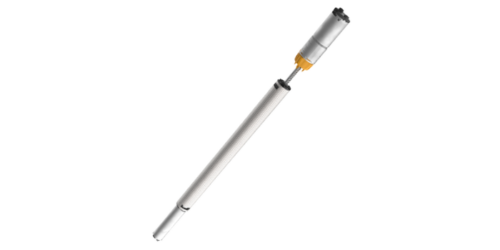

DMDinline D
Compatible with these products

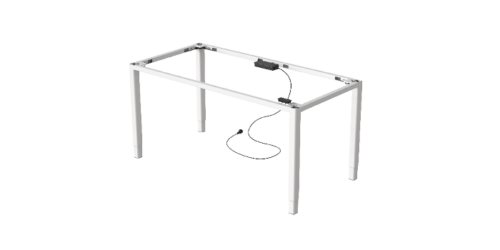

LOGICflex X
LOGICflex F
LOGICflex S
LOGICflex M
DMItouch I
DMItouch B
DMItouch C
DMIclassic B
DMIclassic C
DMPhub S
DMPhub M
MOTIONwork
LOGIClink

More Information

Download

For more information download the DMDinline S datasheet.

Logicdata Click-Icon-blau

Download

For more information download the DMDinline S user guide.

Logicdata Click-Icon-blau
