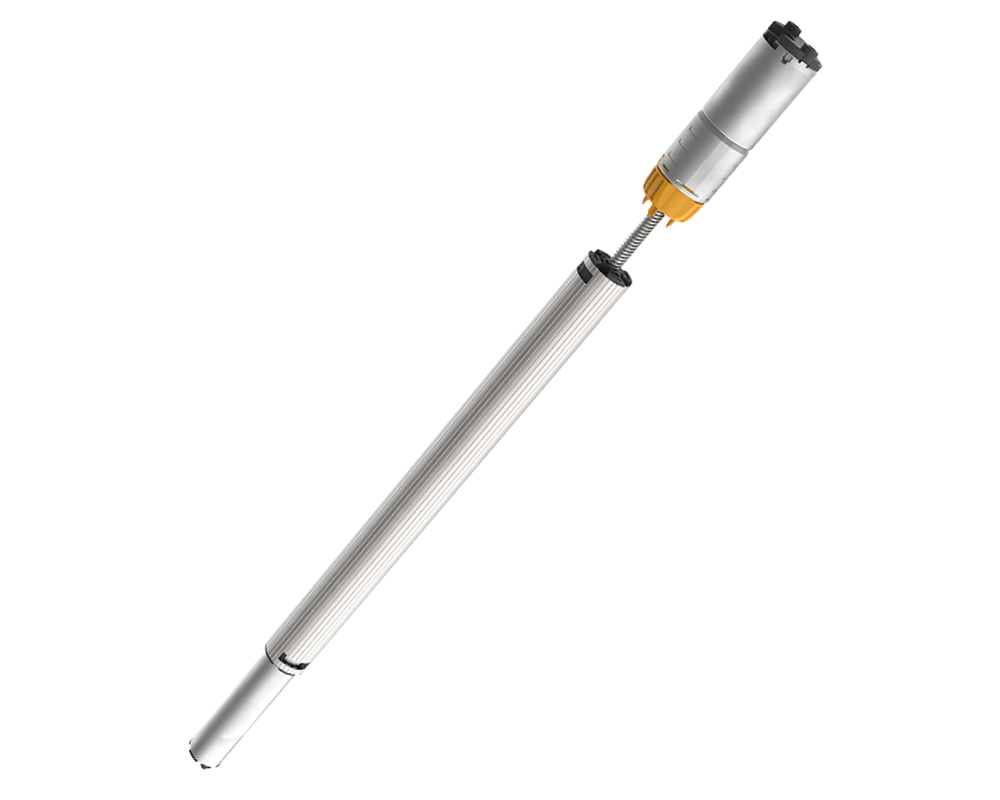

DMDinline D
The power of simplicity.
DESCRIPTION
Magnificent. The intelligent technology within the DYNAMIC MOTION system’s Actuators delivers a uniquely powerful, responsive driving experience without the need for external Control Boxes.
The DMDinline D’s Plug&Play compatibility concept facilitates total freedom in design for a vast range of dual-stage adjustable table systems, including benching and conference applications. With countless other features – including ultra-quiet brushless motor technology and an as-standard inbuilt collision sensor that dramatically reduces the risk of costly system damage – the DMDinline D plays and integral role in the creation of the intelligent height-adjustable solutions that the modern workplace desires.
FEATURES
Inline Actuator for dual-stage telescopic table legs
Integrated Control Unit – no need for external Control Boxes
Market-leading efficiency and responsiveness
Compatibility with bench and conference applications
Brushless motor technology
Simplified cable management system
Integrated collision sensor
TECHNICAL DATA
Dynamic force: Up to 800 N per Actuator
Diameter: 40 mm / 1.57 ”
Installation length: 511 mm / 20.14 ”
Stroke: 662 mm / 26.04 ”
Constant speed: 38 mm/s / 1.50 ”/s (until full load)
Inline Actuator for dual-stage telescopic table legs
