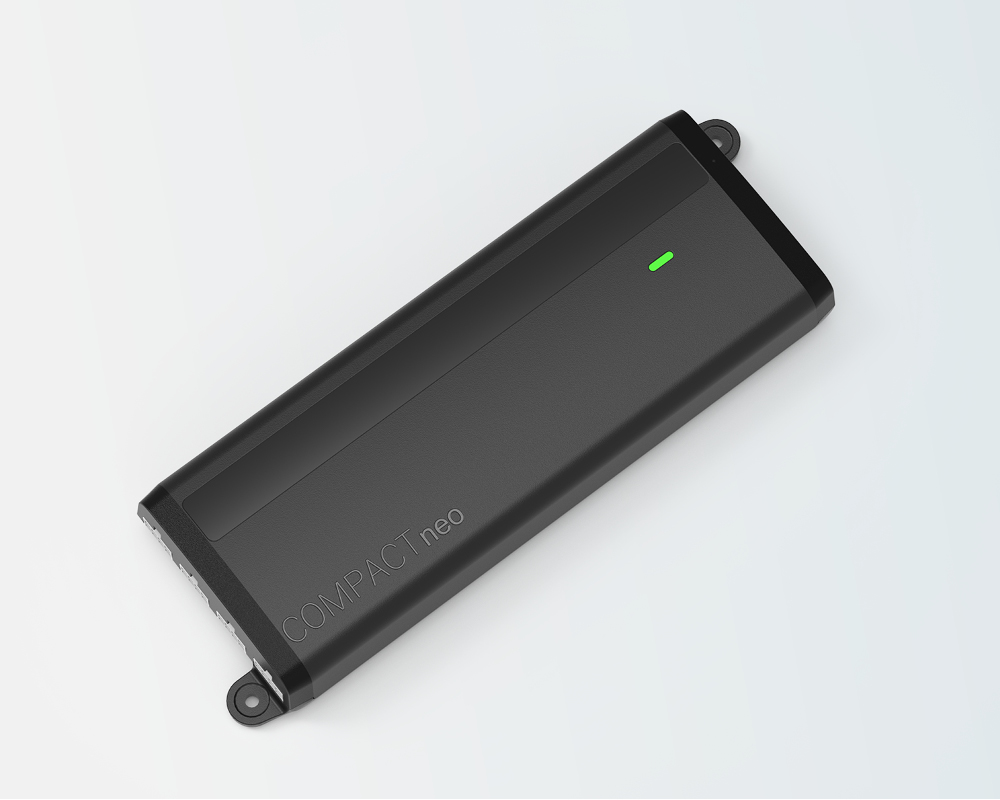

THE NEXT GENERATION: COMPACTneo
Continuity where it matters. Progress where it counts.
The COMPACTneo builds on the trusted foundation of the bestseller COMPACT, retaining all the Control Box qualities customers value. On top of that, the COMPACTneo has been refined to meet the demands of today’s dynamic environments. Engineered for high-performance and complex multi-leg applications, this next-generation Control Box delivers seamless system integration while meeting the growing need for sustainable, forward-thinking solutions.
Prepared to drive your success and ready to embrace what’s next.

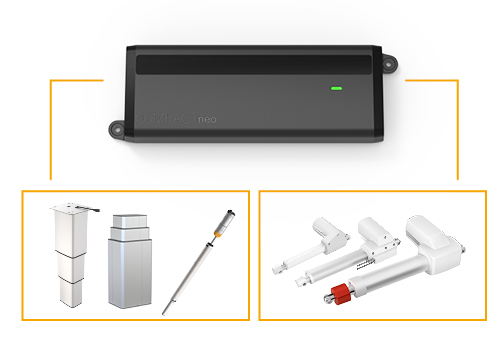

A Platform, Not Just a Control Box
Freedom of Motor Choice: Use any DC 24 V Supplied Motor.
The COMPACTneo goes far beyond predefined motor setups or fixed desk concepts. With our CONFIGtool, it becomes a fully flexible DC motor control platform that adapts to virtually any motion concept. Compatible with whichever 24 V DC motor, it enables both rotary and linear applications — from TV and projection systems to sliding doors, folding furniture, office workstations, adjustable shelving, and lift mechanisms.
Instead of hardware variants, configuration defines the solution. Speed, stroke, acceleration, collision detection, synchronization — every parameter can be precisely tailored to the application. Motion is defined by your concept, not by technical limitations.
Cascading Feature
When one Control Unit Isn’t Enough.
For applications requiring synchronization of more than four motors, the COMPACTneo enables cascading multiple control units into a unified, coordinated system. This ensures a smooth operation of complex multi-motor configurations while maintaining optimal performance and stability at all times.
To meet higher power requirements, the parallel mode of the COMPACTneo merges two channels to drive a single motor. This approach delivers enhanced output capacity while preserving precise control and synchronization. It is engineered for scalable systems where exceptional performance and accuracy are essential.
Comparison: COMPACT & COMPACTneo
| COMPACT | COMPACTneo | |
| Supply Voltage | Separate EU & US version | Wide range EU and US version |
| Rated Power Output | 380 W | 550 W |
| Motor Channels (8-pin) | 3 | 4 |
| Handset Connector | DIN | RJ |
| DC out | – | 25 W continuous |
| Cascading | Up to 12 actuators | Up to 8 actuators |
| System Protection | Current ISP + external sensor | Current ISP + integrated Gyro + external sensor (SQL) |
Fields of Application

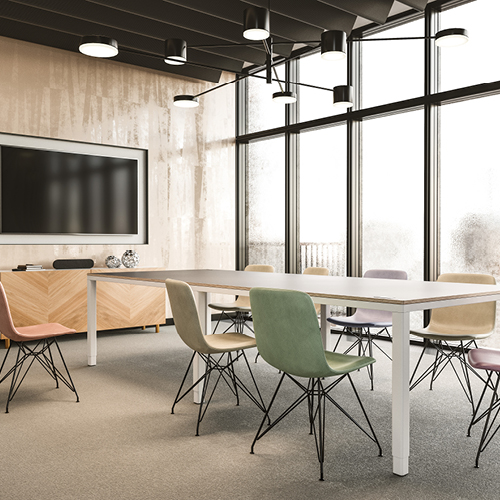

- Office desks and CEO tables

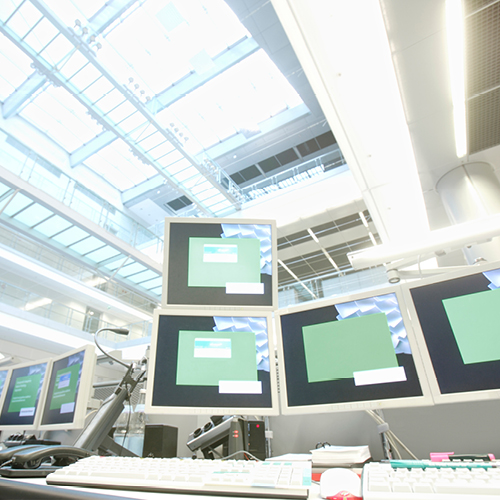

- Control room workstations with monitor adjustment

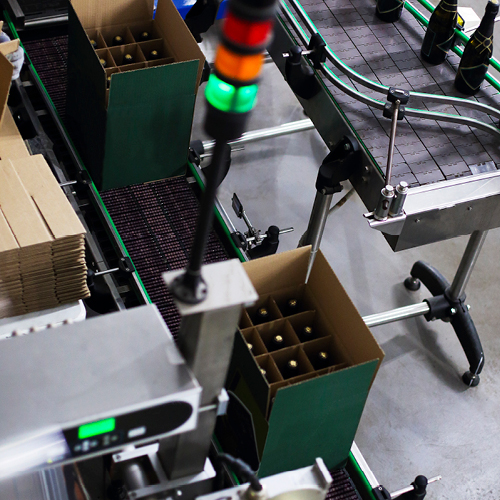

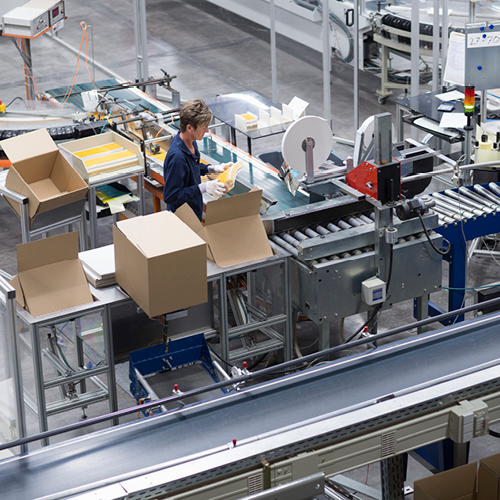

- Industrial lift mechanisms like packing stations
- Folding furniture
- Adjustable shelving
COMPACTneo is hitting the road. Experience the platform in action, discover its full flexibility, and discuss your specific requirements directly with our experts.
See it Live at:
– Workspace Expo Paris
– Hannover Messe
– Automate Chicago
Discover how COMPACTneo redefines motion control, live on site.
