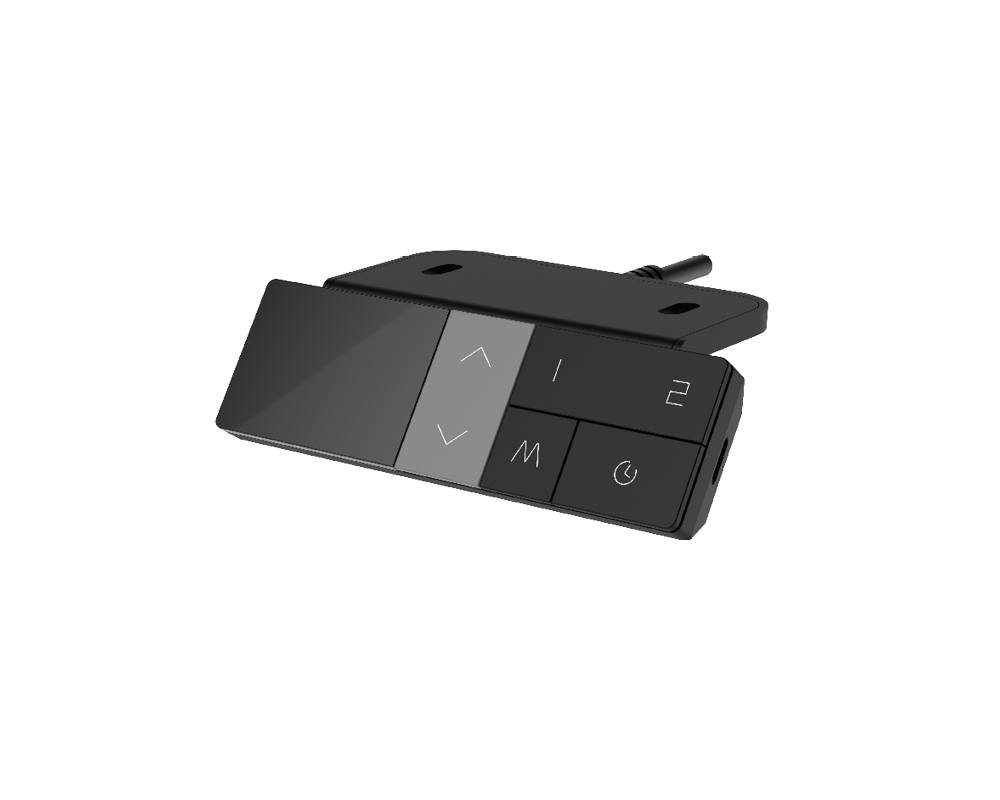

CBIpure C / DMIpure C
The CBI/DMIpure C combines intuitive tactile control with a crisp OLED display for effortless operation of LOGICDATA’s system. With two memory positions, a convenient timer function, and an integrated USB-C charging port, it brings everyday functionality to your fingertips in a clean, timeless design.
- Tactile push buttons
- OLED display
- Two memory positions
- Timer function
- USB-C charging
- Timeless, minimalistic design
Downloads
Technical Data
| Rated Supply Voltage | 5 V DC ± 10% (logic supply) 30 V DC (USB-C power supply) |
| Current Consumption (Average) | 50 mA |
| Current Consumption (Standby) | <2 mA |
| Cable Length | 1 800 mm / 70.866” (± 50 mm / 1.967”) |
| Dimensions (l × w × h) | 114 mm × 44.4 mm × 60 mm |
